Cleanroom panel filters

Introducing our high-performance cleanroom panel air filters, designed to meet the stringent requirements of EPA, HEPA, and ULPA standards. Engineered for optimal air quality, these filters capture airborne contaminants with exceptional efficiency, ensuring a sterile environment crucial for industries like pharmaceuticals, biotechnology, and electronics. Our filters boast a robust construction for durability and a low pressure drop, maximizing airflow while minimizing energy costs. With a variety of sizes and configurations available, our cleanroom panel air filters provide reliable protection, helping you maintain compliance and enhance operational efficiency. Trust our filters to deliver the clean air your processes demand.

Find the right filter for your needs

Nanoclass Square Pro Membrane KE

Filter classes: E11 to U16
Integral knife-edge for use with gel-seal grid ceiling systems
Available in depth of 109 mm
Individual scan test report acc. to EN 1822 and ISO 29463
Extremely low pressure drop due to ePTFE media
High tensile strength, 100% boron free
Minipleat technology for laminar flow

Nanoclass Square Pro Membrane FC

Filter classes: E11 to U16
Continuous polyurethane foam gasket
Available in depth of 69, 90, 150 mm
Individual scan test report acc. to EN 1822 and ISO 29463
Extremely low pressure drop due to ePTFE media
High tensile strength, 100% boron free
Minipleat technology for laminar flow

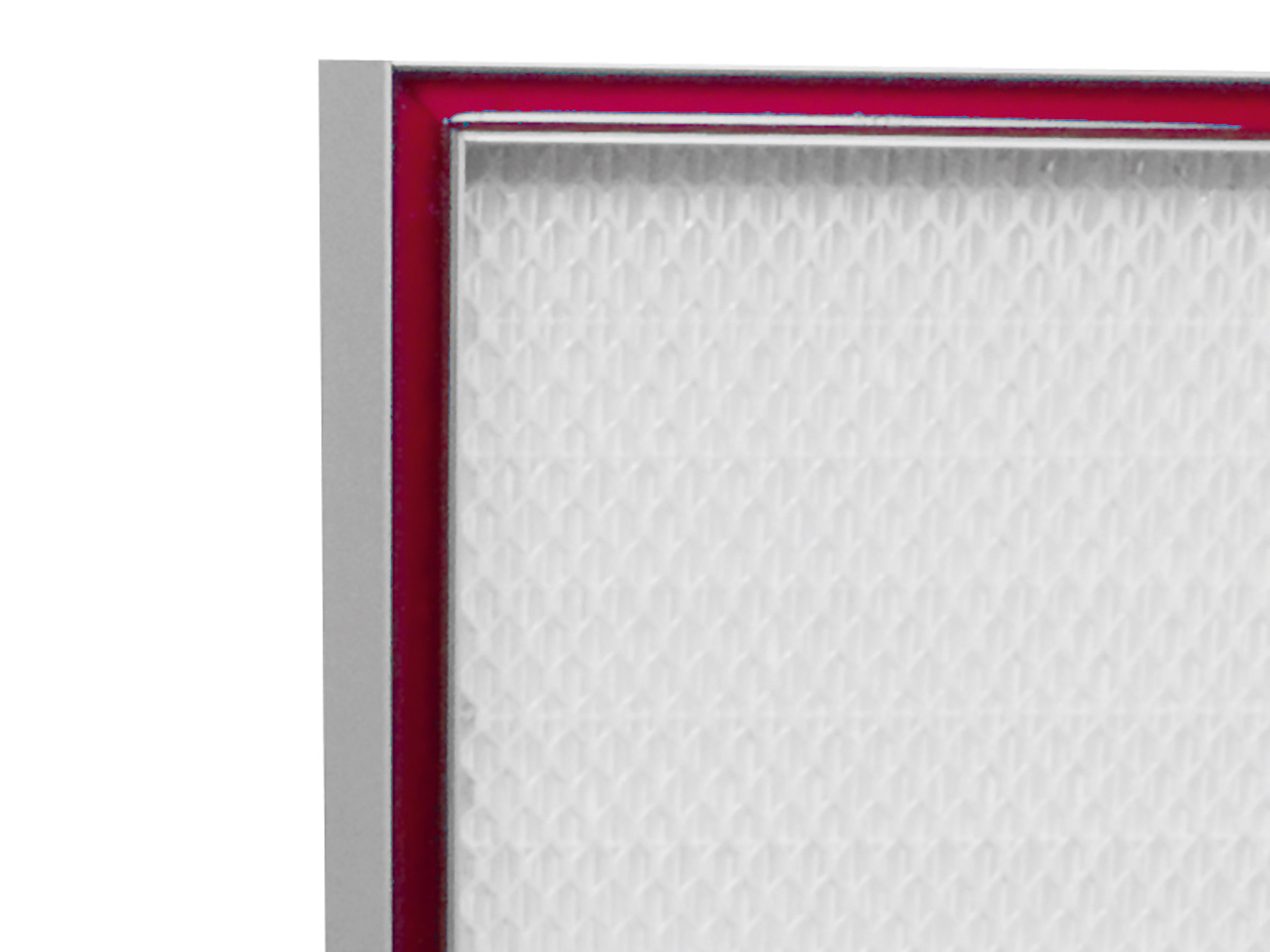

Nanoclass Square Pro Membrane TC

Filter classes: E11 to U16
Self-healing, fluid gel gasket
Available in depths of 71, 80 and 104 mm
Individual scan test report acc. to EN 1822 and ISO 29463
Extremely low pressure drop due to ePTFE media
High tensile strength, 100% boron free
Minipleat technology for laminar flow

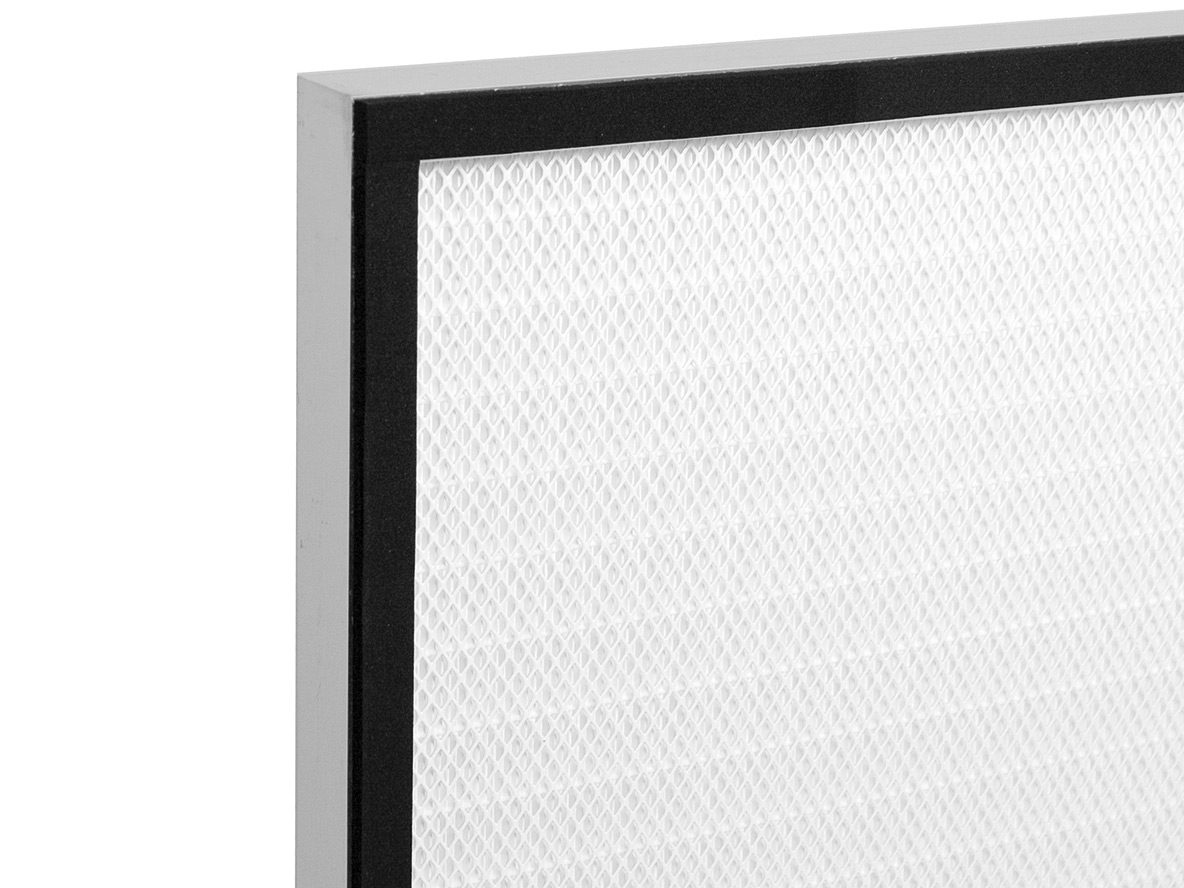

Nanoclass Square Eco FL

Filter classes: E11 to U16
EPDM or neopren flat gasket
Available in depths of 30, 68, 90 and 150 mm
Low pressure drop
Individual scan test report acc. to EN 1822 and ISO 29463
Minipleat technology for laminar flow

Nanoclass Square Eco FC

Filter classes: E11 to U16
Continuous polyurethane gasket
Available in depths of 69, 70, 78, 90, 110, 115 and 150 mm
Low pressure drop
Individual scan test report acc. to EN 1822 and ISO 29463
Minipleat technology for laminar flow

Nanoclass Square Eco KE

Filter classes: E11 to U16
Integral knife-edge for use with gel-seal grid ceiling systems
Available in depths of 86, 109 and 134 mm
Low pressure drop
Individual scan test report acc. to EN 1822 and ISO 29463
Minipleat technology for laminar flow

Nanoclass Square Eco TC

Filter classes: E11 to U16
Self-healing, fluid gel gasket
Available in depths of 80, 83, 102, 104 and 128 mm
Low pressure drop
Individual scan test report acc. to EN 1822 and ISO 29463
Minipleat technology for laminar flow

Nanoclass Square Select

Filter classes: E11 to H14
Various frame depths and types
Low pressure drop
Individual scan test report acc. to EN 1822 and ISO 29463
Minipleat technology for laminar flow

Nanoclass Square Pro FL HT

Filter classes: E11 to U16
High temperature resistance up to 120°C
Available in depths of 68 to 150 mm
Low pressure drop
Individual scan test report acc. to EN 1822 and ISO 29463
Minipleat technology for laminar flow

Nanoclass Square Flange HT

Filter classes: E11 to E12
High temperature resistance up to 120°C
Available in depths of 88 mm
Large filter surface area for high dust holding capacity
Extremely high burst pressure
Individual scan test report acc. to EN 1822 and ISO 29463
