Paint Booth Filters

MANN+HUMMEL Air Filtration Americas offers many solutions for spray booth applications.  The applications include intake, exhaust and Aerospace 319 NESHAP filtration.  Intake filtration options include several high efficiency diffusion media and panel filters.  Exhaust filter options include both fiberglass and polyester medias as well as extended surface options.  NESHAP 319 filters are available for both two and three stage systems.

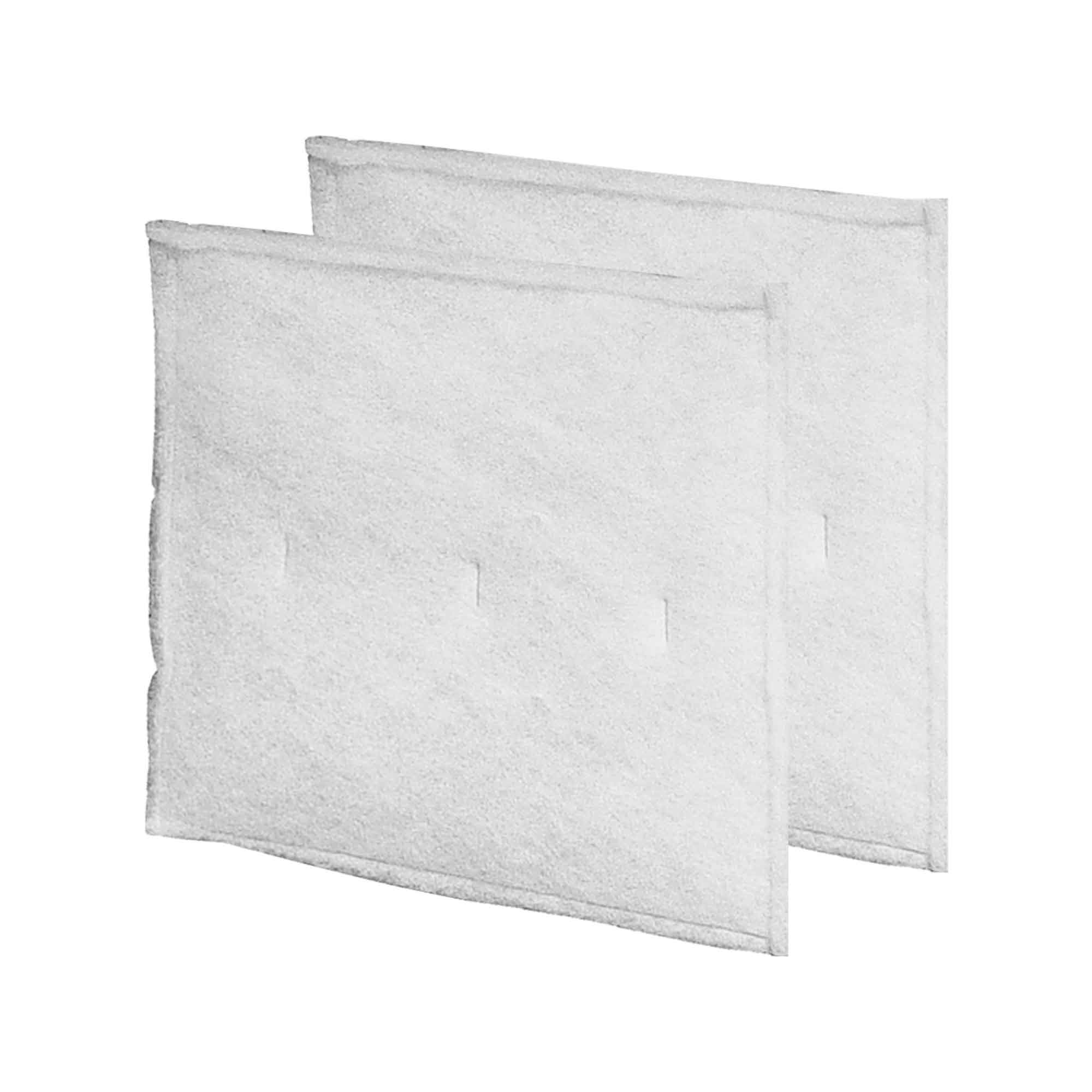

Tri-Dek® Panels

  • Offered in 2, 3 and 4-ply
  • Available in panels and links
  • Internal wire support
  • Can be used for intake or exhaust
Tri-Dim Literature

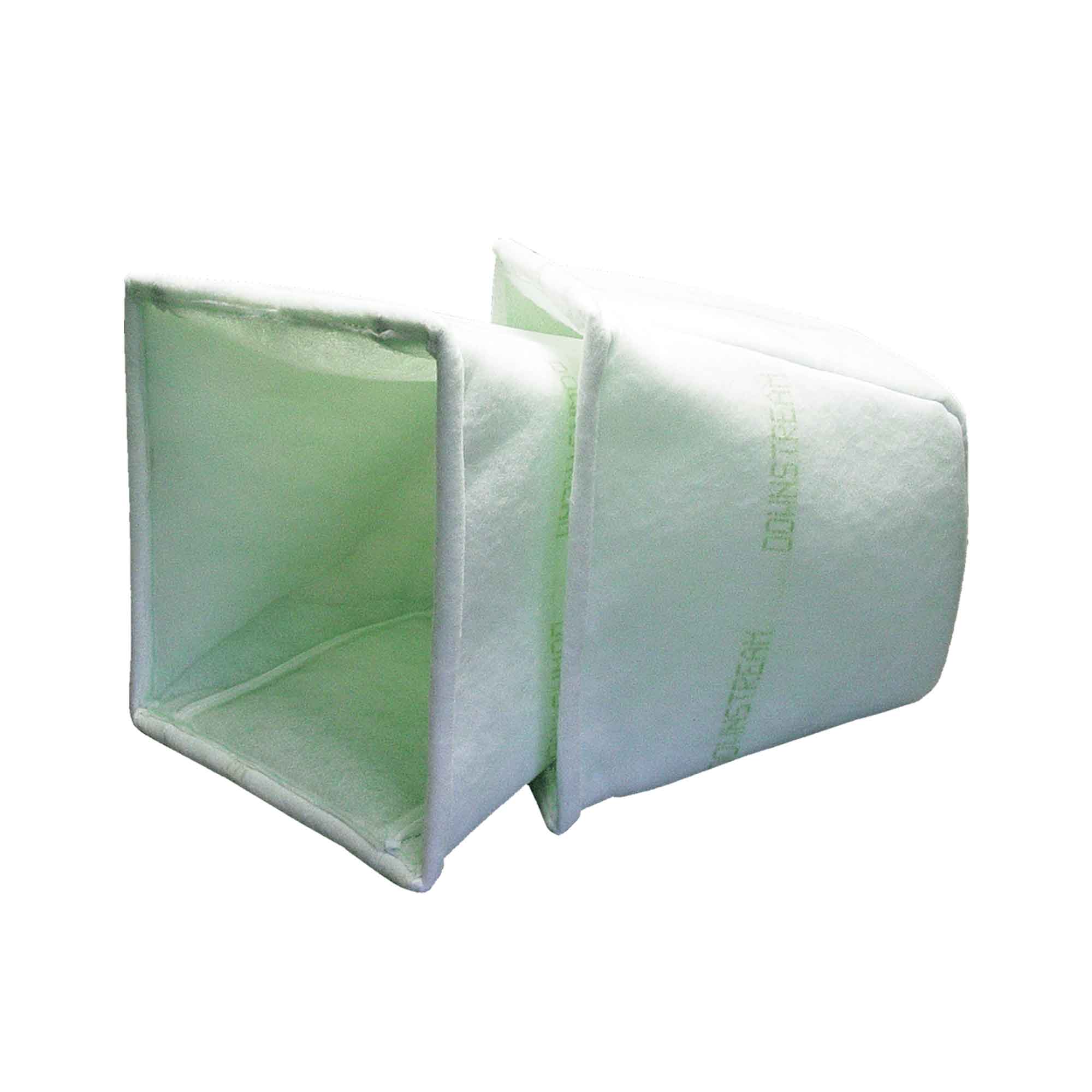

Tri-Dek® Cubes

  • Extended surface filters
  • Available in 2, 3, 4 ply
  • MERV 11 and MERV 13 efficiencies
  • Can be used for both intake and exhaust
  • Available with multiple pockets
Tri-Dim Literature

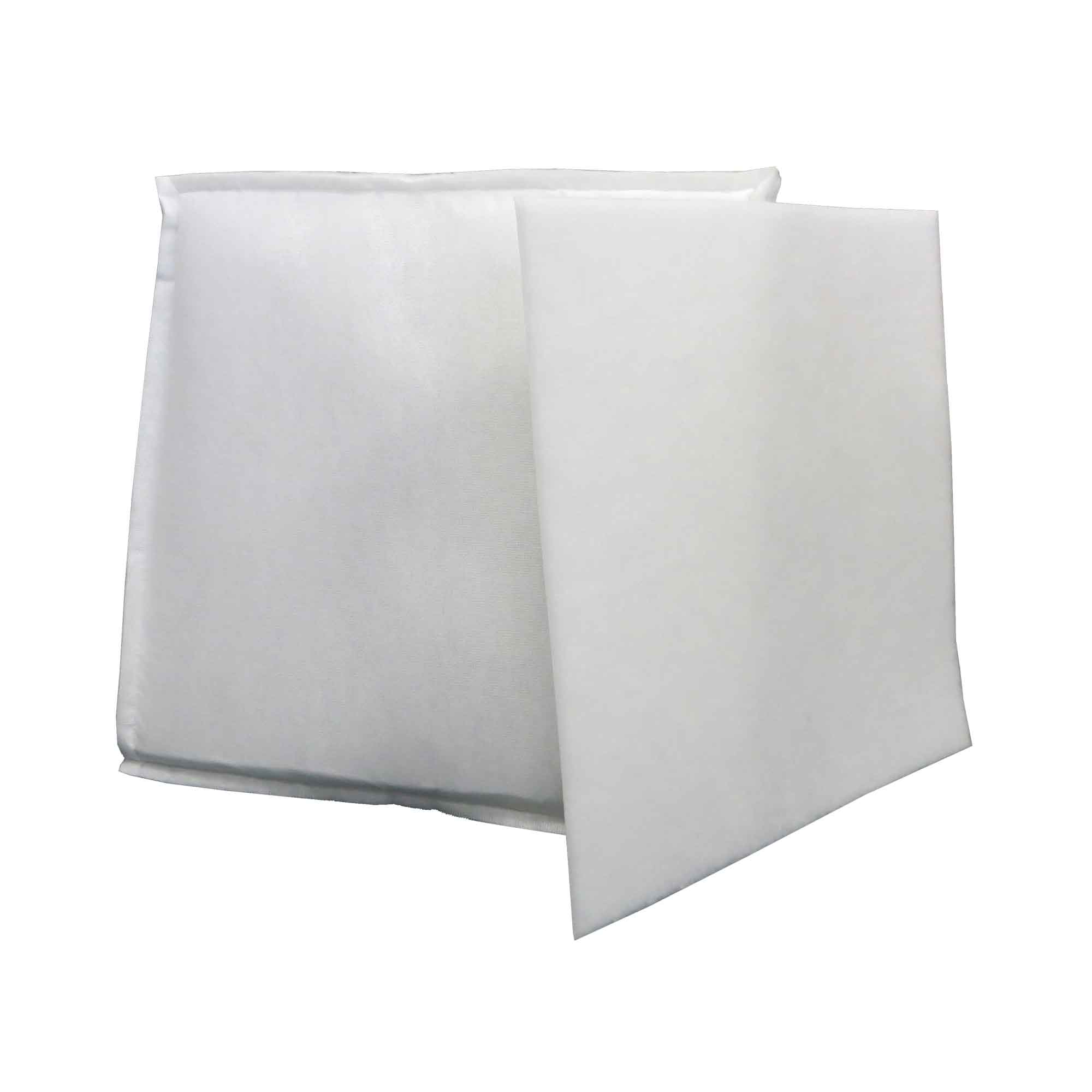

Tri-Dek® TR-1

  • Average efficiency over 10 micron = 95%
  • Available in media pads, rolls and wire ring panels
  • Tackified
  • Diffusion media
Tri-Dim Literature

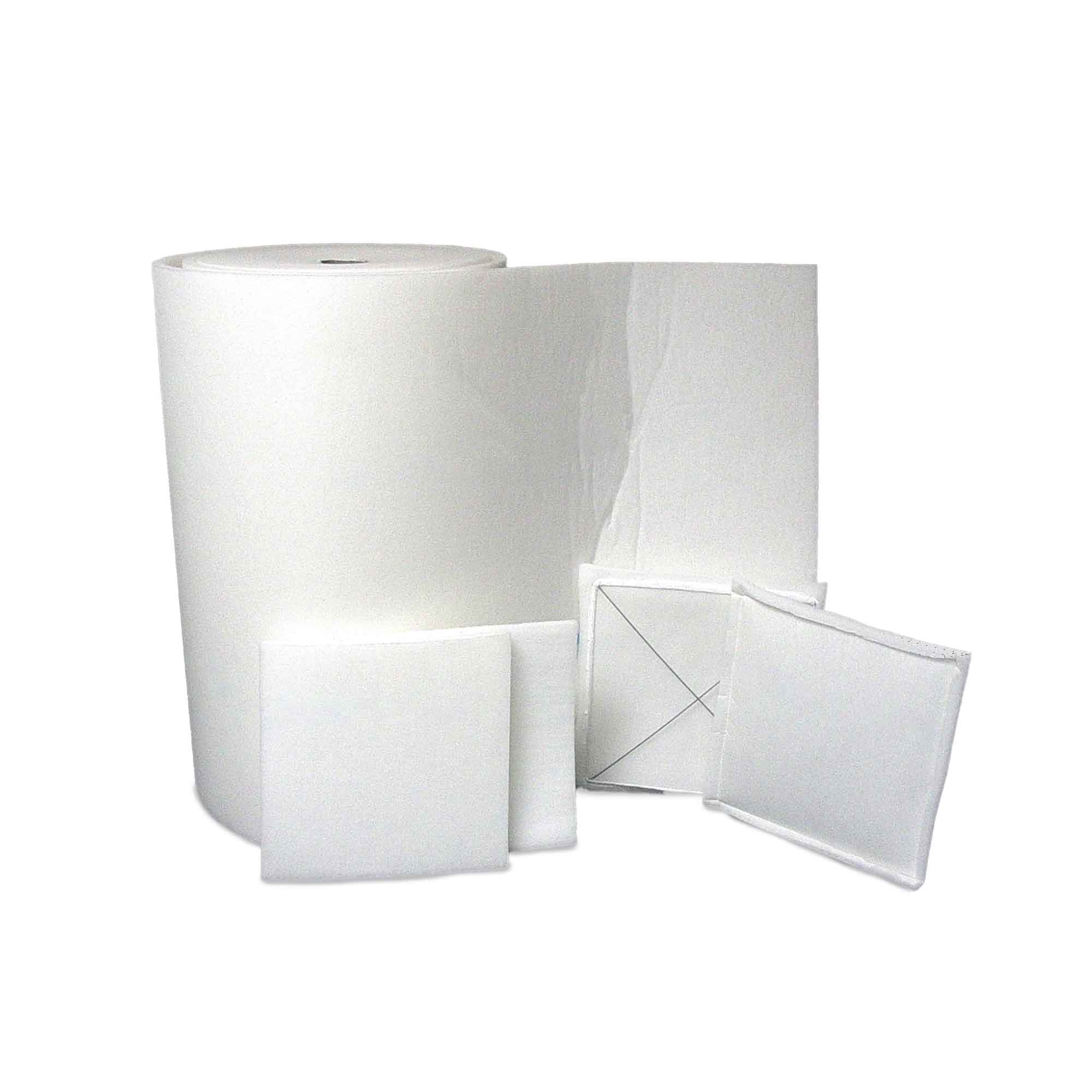

Tri-Dek® D700

  • Diffusion media for laminar flow booths
  • Available in rolls, pads and wire ring panels
  • MERV 9 efficiency
  • Average efficiency over 5 micron = 99%
Tri-Dim Literature

Tri-Dek® D800

  • Available in pads, rolls and wire ring panels
  • MERV 11 efficiency
  • Diffusion media for laminar flow booths
  • 99% average efficiency over 5 micron
Tri-Dim Literature

Tri-Dek® D900

  • Diffusion media for laminar flow booths
  • 99% average efficiency at > 5 microns
  • MERV 9 efficiency
  • Available in pads, rolls and ring panels
Tri-Dim Literature

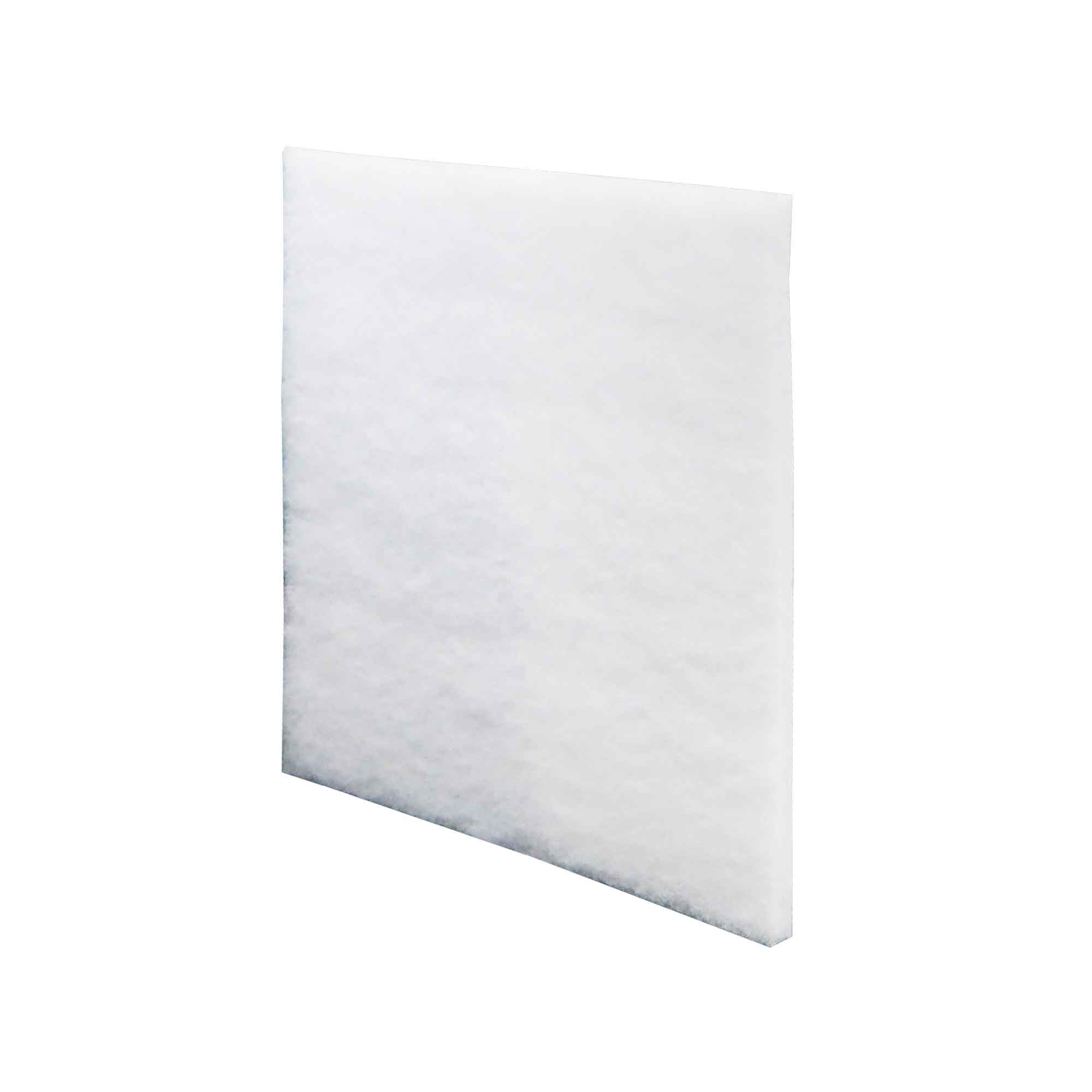

Tri-Dek® PA

  • Available in pads or rolls
  • Average efficiency on paint 99.5%
  • Synthetic arrestor filter
  • Initial resisitance @ 148FPM 0.08" w.g.
Product Datasheet
Tri-Dek PA319

Tri-Dek® PA319

  • Synthetic arrestor filter
  • Available in pads or rolls
  • Average efficiency on paint 99.95%
  • Approved for use in 2-stage 319 systems
Tri-Dim Literature

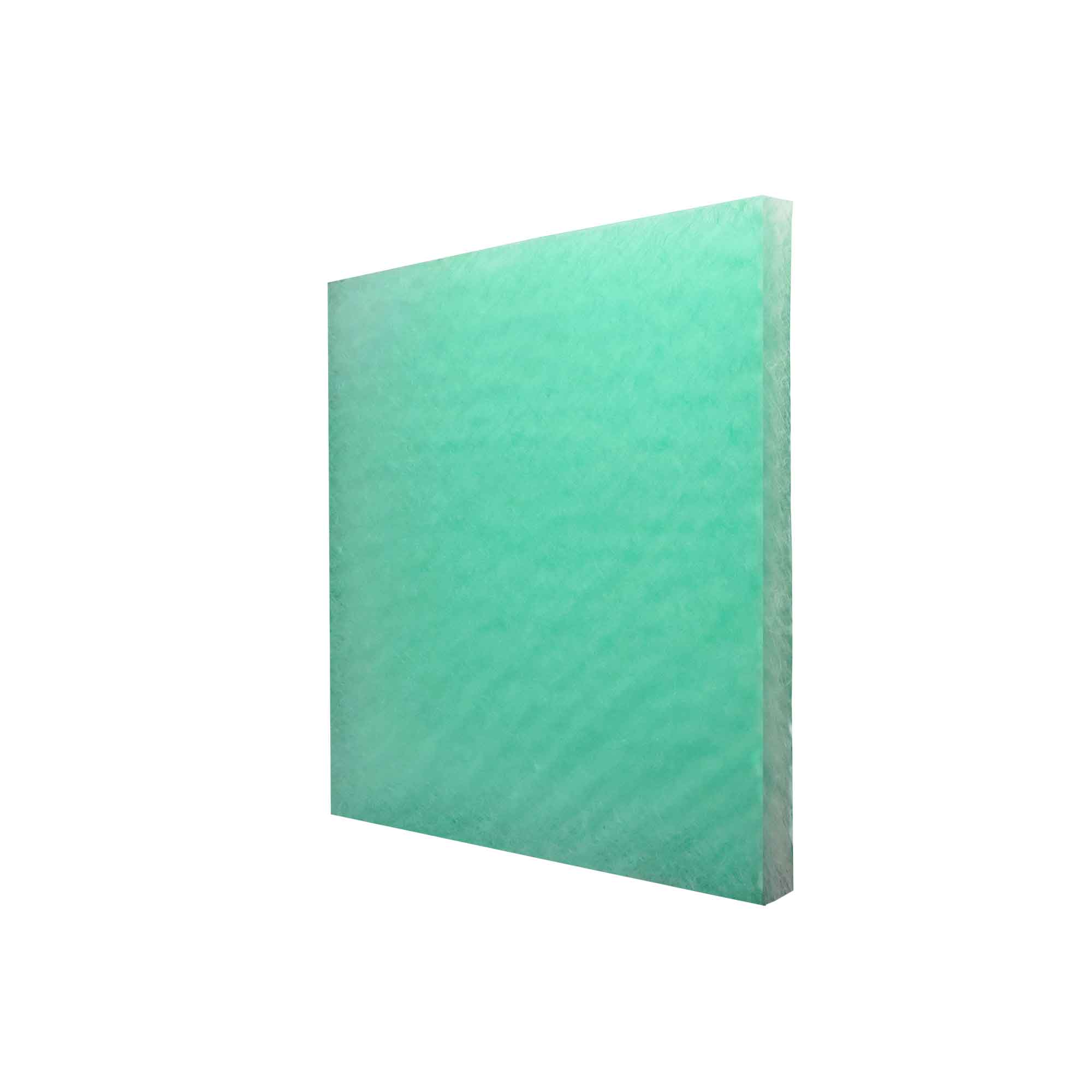

Select PA

  • Fiberglass arrestor filter
  • Available in pads or rolls
  • Average efficiency on paint 99.3%
  • Initial resistance @ 148 FPM 0.02" w.g.
Tri-Dim Literature
Tri-Dek Cube 319

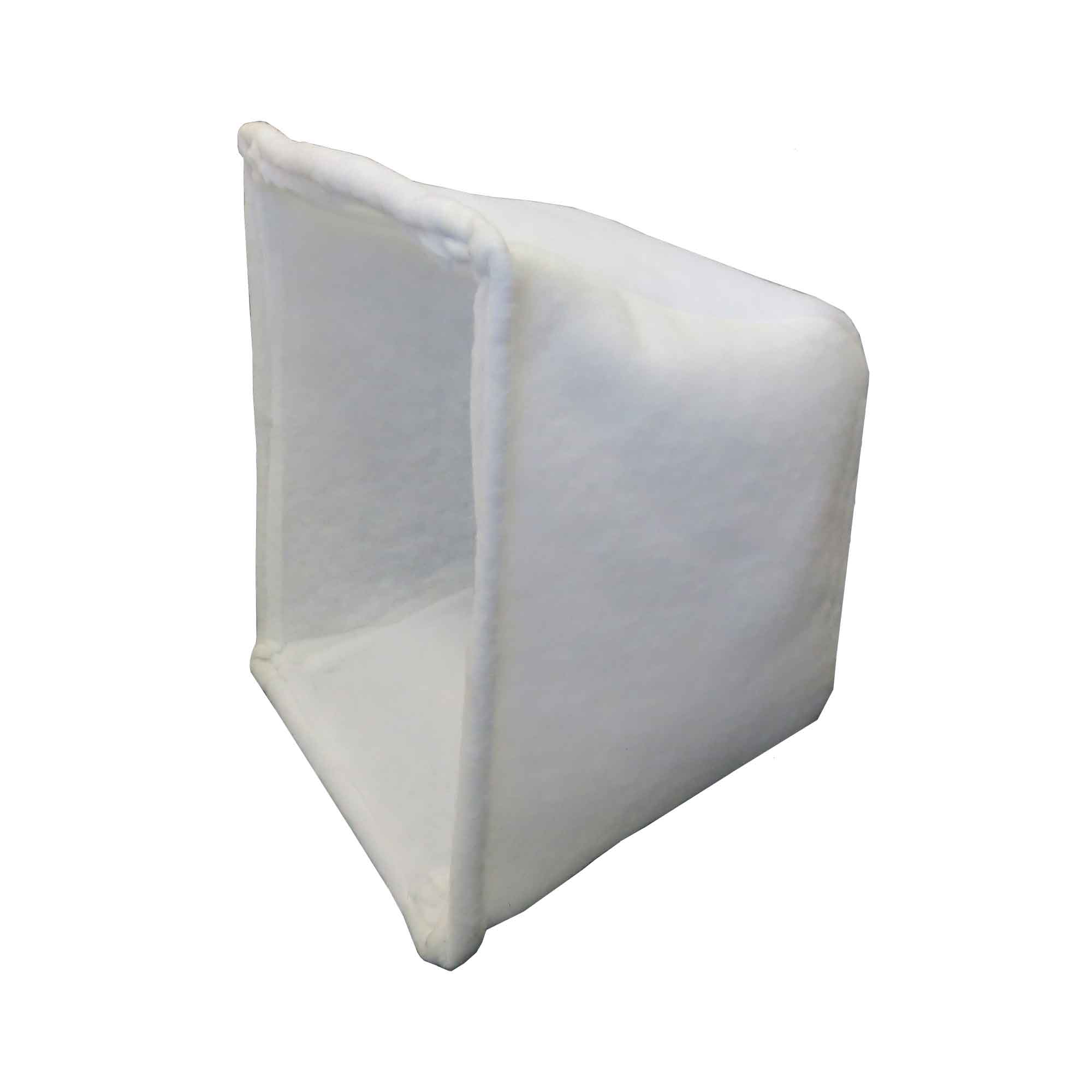

Tri-Dek® Cube 319

  • Designed for use in 319 Chromate Aeospace Systems
  • Paint holding 2.25 lbs. of Chromate paint
  • MERV 7
  • Available with metal header and additional pockets
Tri-Dim Literature
Tri-Dek Cube 319 Plus

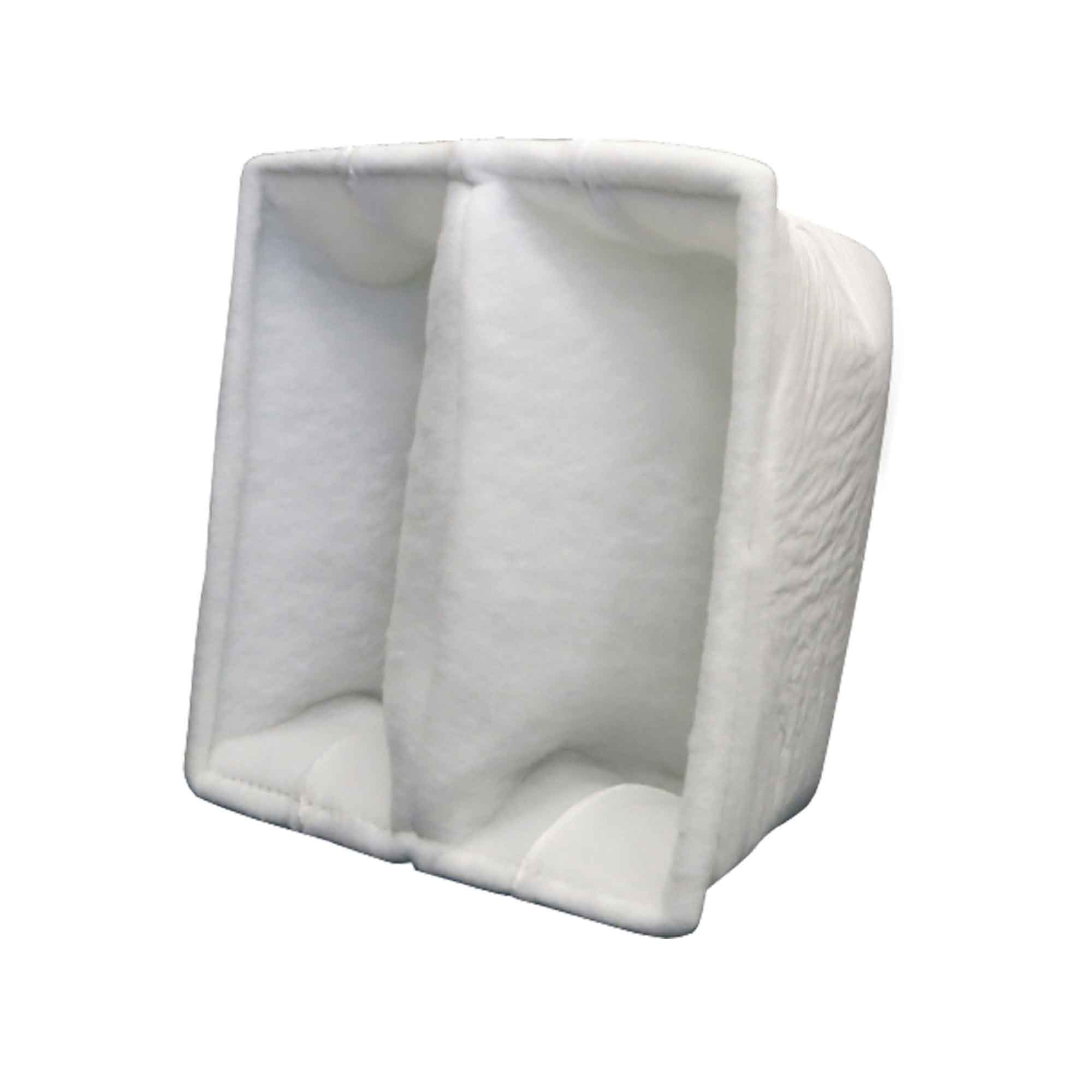

Tri-Dek® Cube 319 Plus

  • Approved for use in 2-stage 319 systems
  • 99.53% initial efficiency on Chromate paint
  • Extended surface filter
  • MERV 12
Tri-Dim Literature

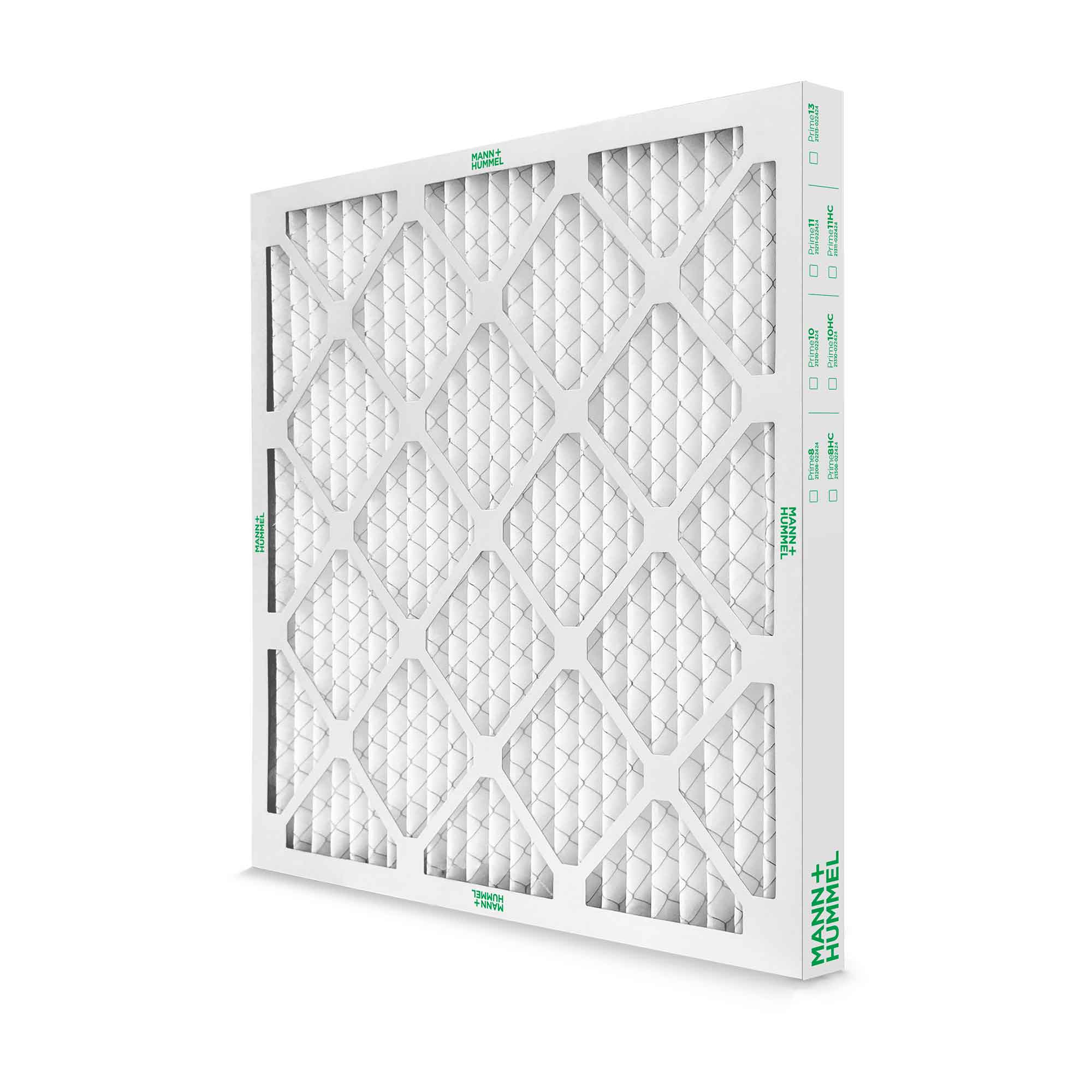

Prime11

  • Approved for use in a 2-stage 319 system
  • MERV 11
  • Available in a long list of standard sizes
  • Initial resistance @ 120FPM 0.03" w.g.
Product Datasheet

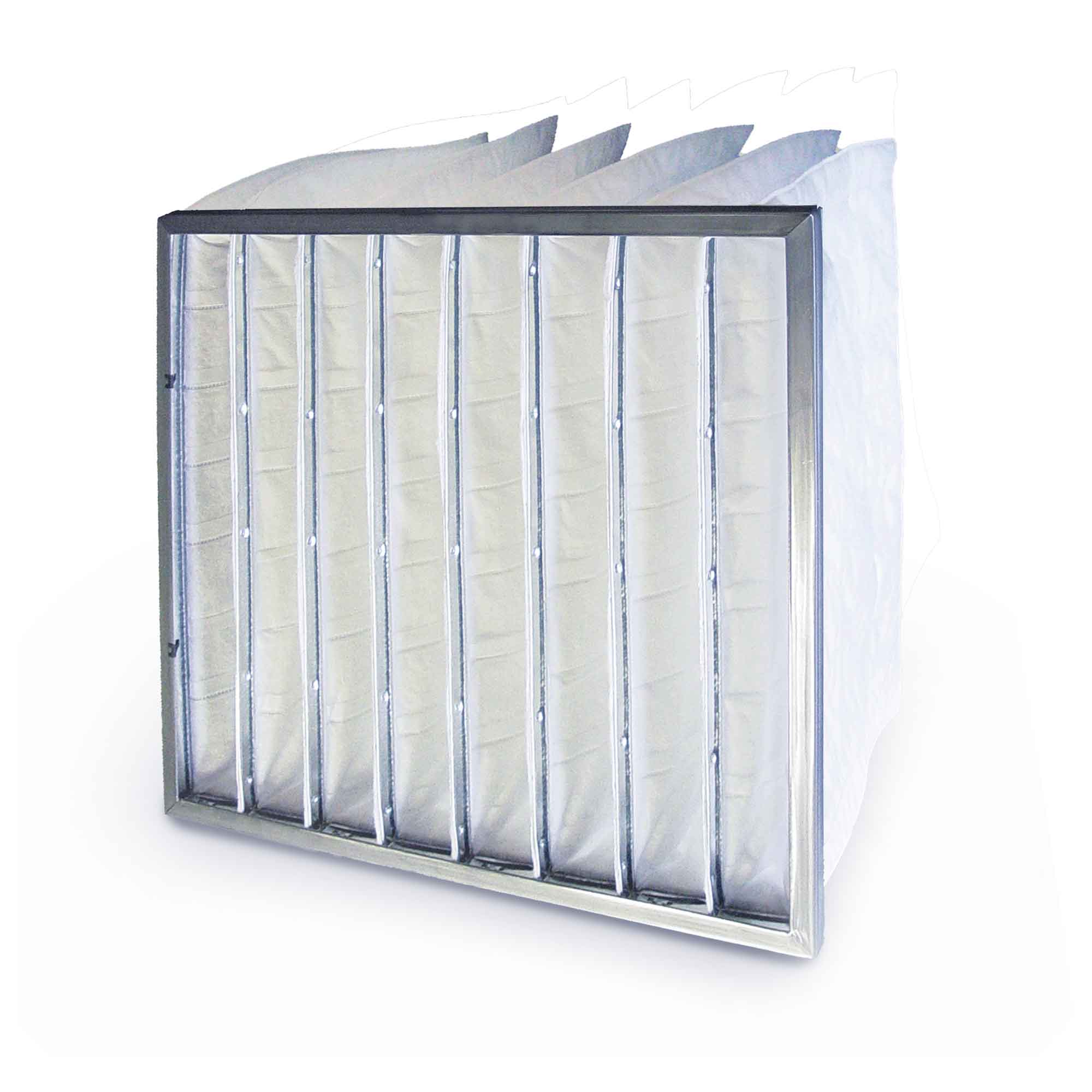

ProPocket Ultra 319

  • Approved for use in 3-stage NESHAP systems
  • MERV 15
  • Initial efficierncy on Chromate paint 99.93%
  • Extended surface filter
Tri-Dim Literature

ProPocket Dual Ultra 85 319

  • Approved for use in 3-stage 319 systems
  • MERV 14
  • Dual layer media for a long service life
  • Available in a variety of sizes and pocket combinations
Tri-Dim Literature

ProPocket Dual Ultra 95 319

  • Approved for use in a 3-stage NESHAP system
  • MERV 15
  • Dual layer media for a long service life
  • Special sizes available
Tri-Dim Literature

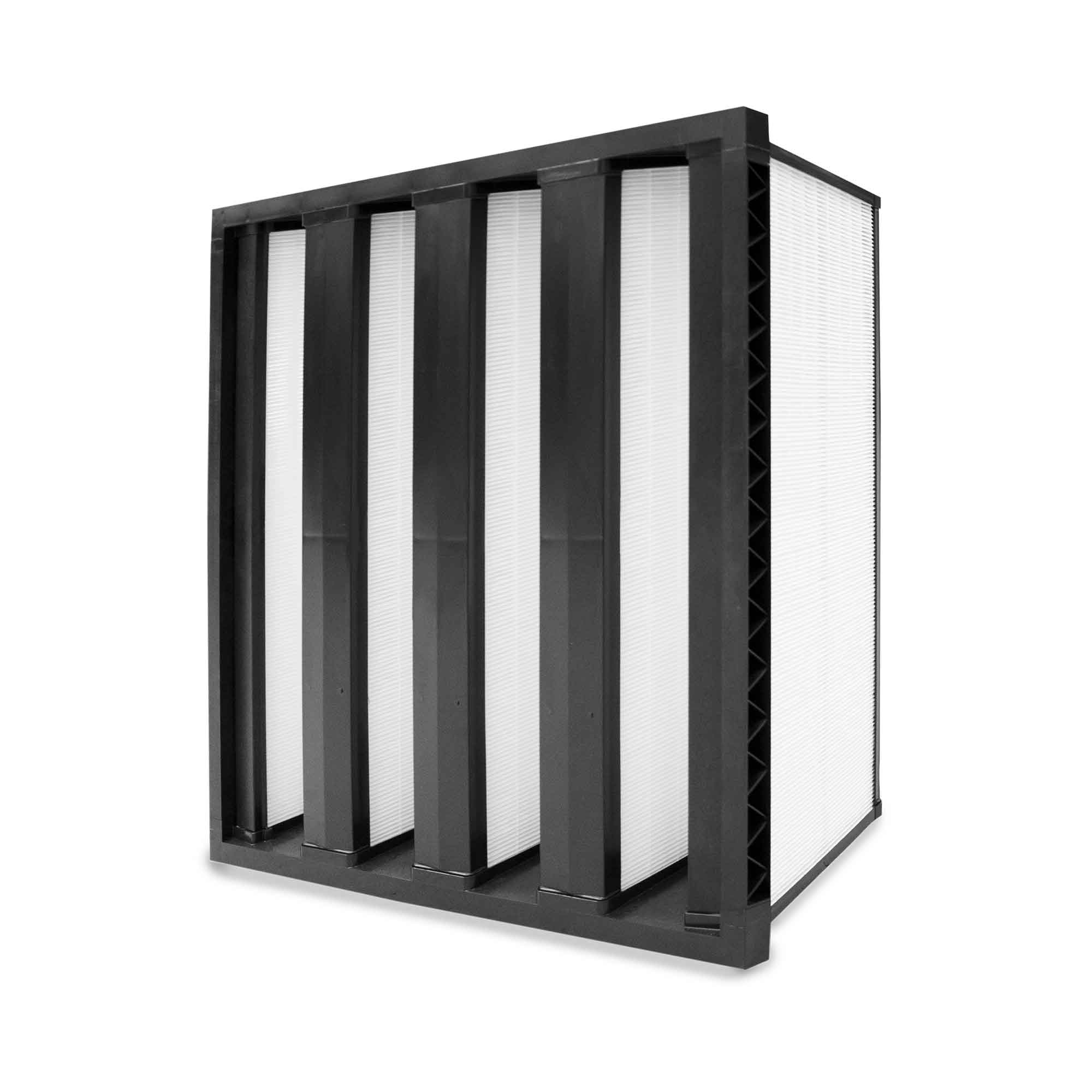

TL6 Ultra 319

  • Approved for use in 3-stage NESHAP systems
  • Robust HIPS frame
  • MERV 15
  • Synthetic media
Tri-Dim Literature
