HVAC Housings & Holding Frames

MANN+HUMMEL Air Filtration Americas offers a wide variety of ASHRAE grade HVAC housings, frames, and other equipment. This line provides customizable solutions to meet the needs of any application you are working with.

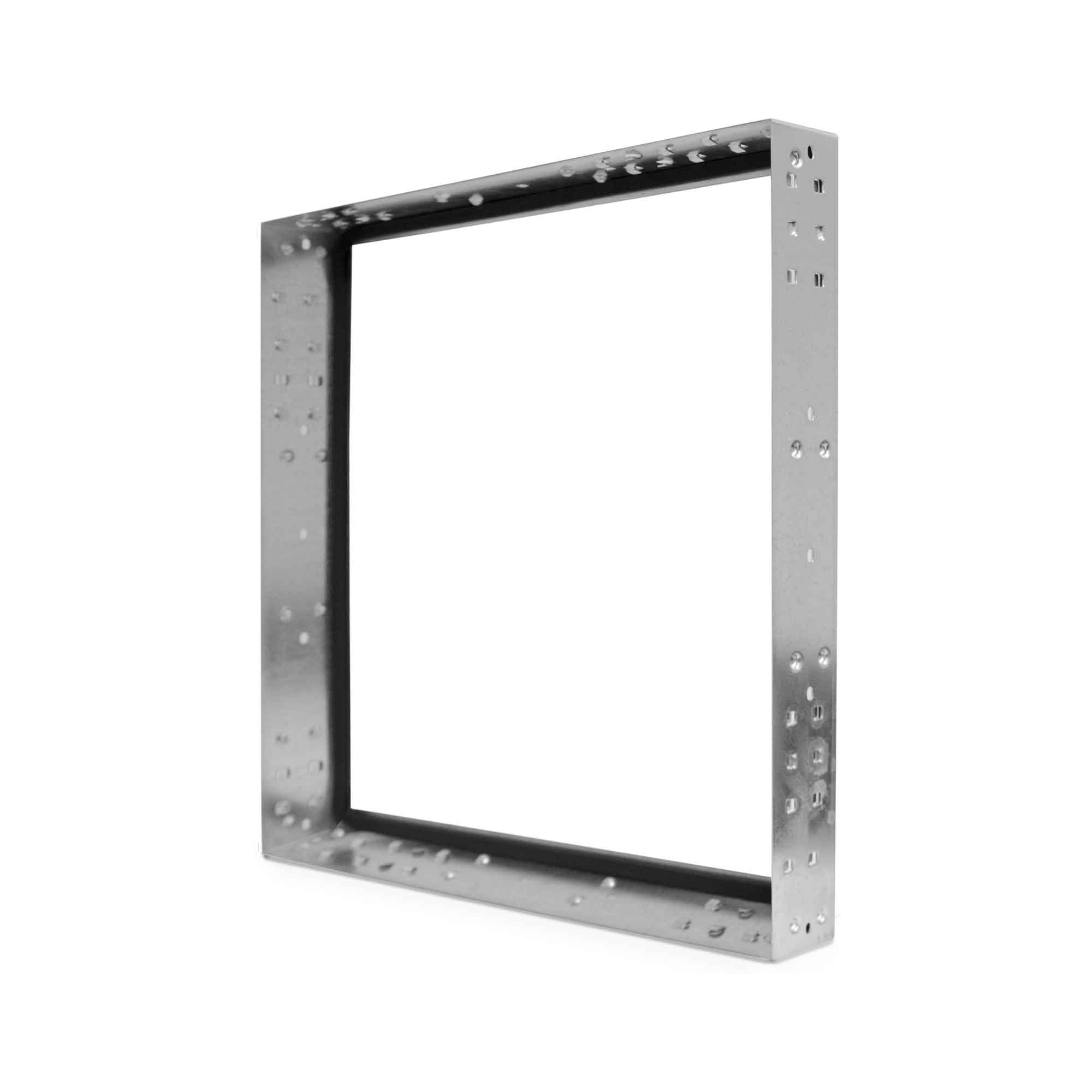

Microlock ASHRAE TML Holding Frame

Available in 16 gauge aluminized, galvanized or stainless steel
Functional in either front or rear load applications
Can be used with virtually all ASHRAE rated filters
Multiple stages per frame
Optional gasketing

Tri-Dim Literature

Microlock ASHRAE TM8 Holding Frame

Microlock ASHRAE TM8 Holding Frame

Seven standard sizes available
Available in aluminized, galvanized, or stainless steel
Functional in either front or rear load applications
Can be used with virtually all ASHRAE rated filters
Multiple stages per frame
Optional gasketing

Tri-Dim Literature

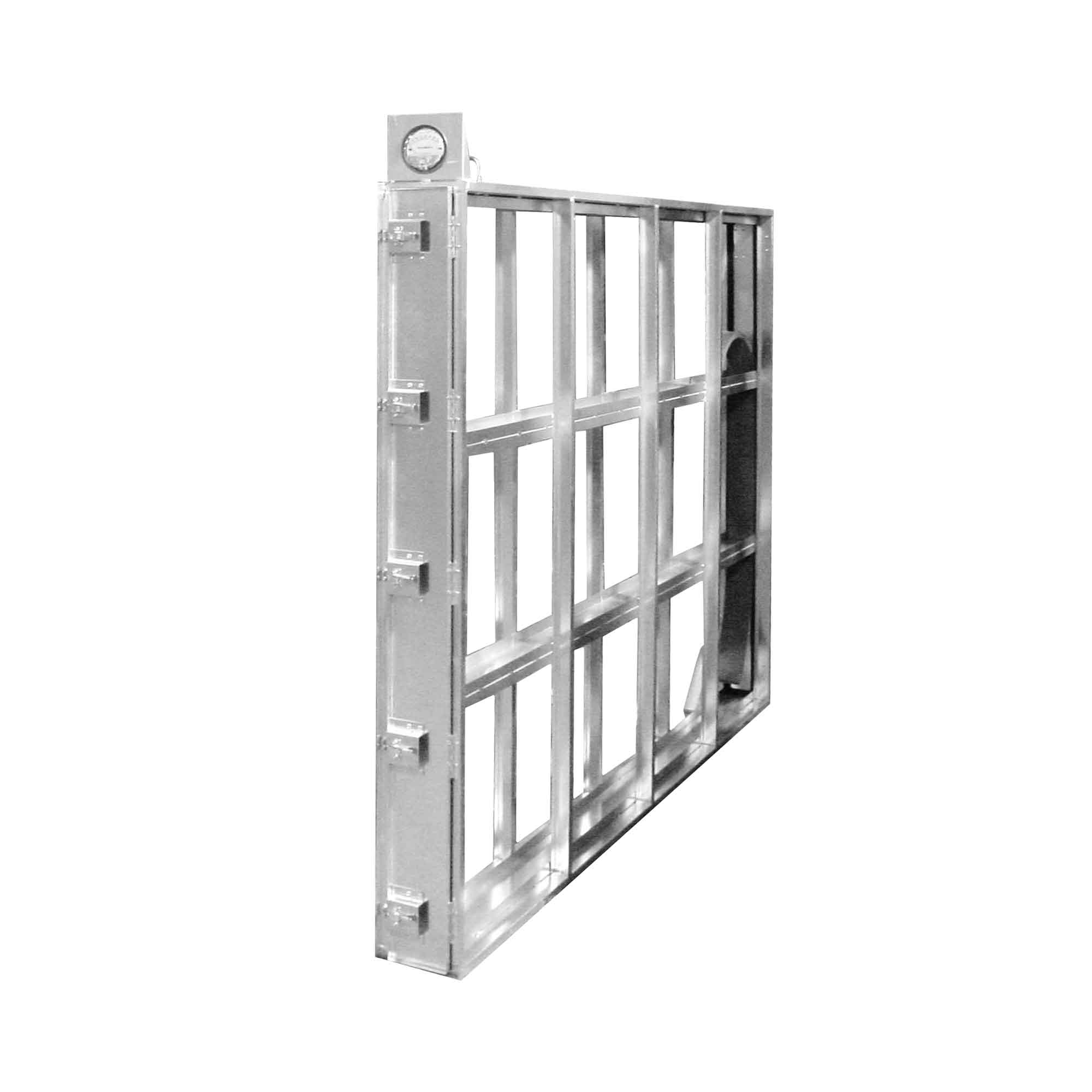

Microlock ASHRAE FB Housing

Galvanized or stainless steel options
Welded construction with corner supports for rigidity
Flexible filter configurations
Gasketed, positive-tension doors
Perform up to ± 3” w.g.
Factory installed flange

Tri-Dim Literature

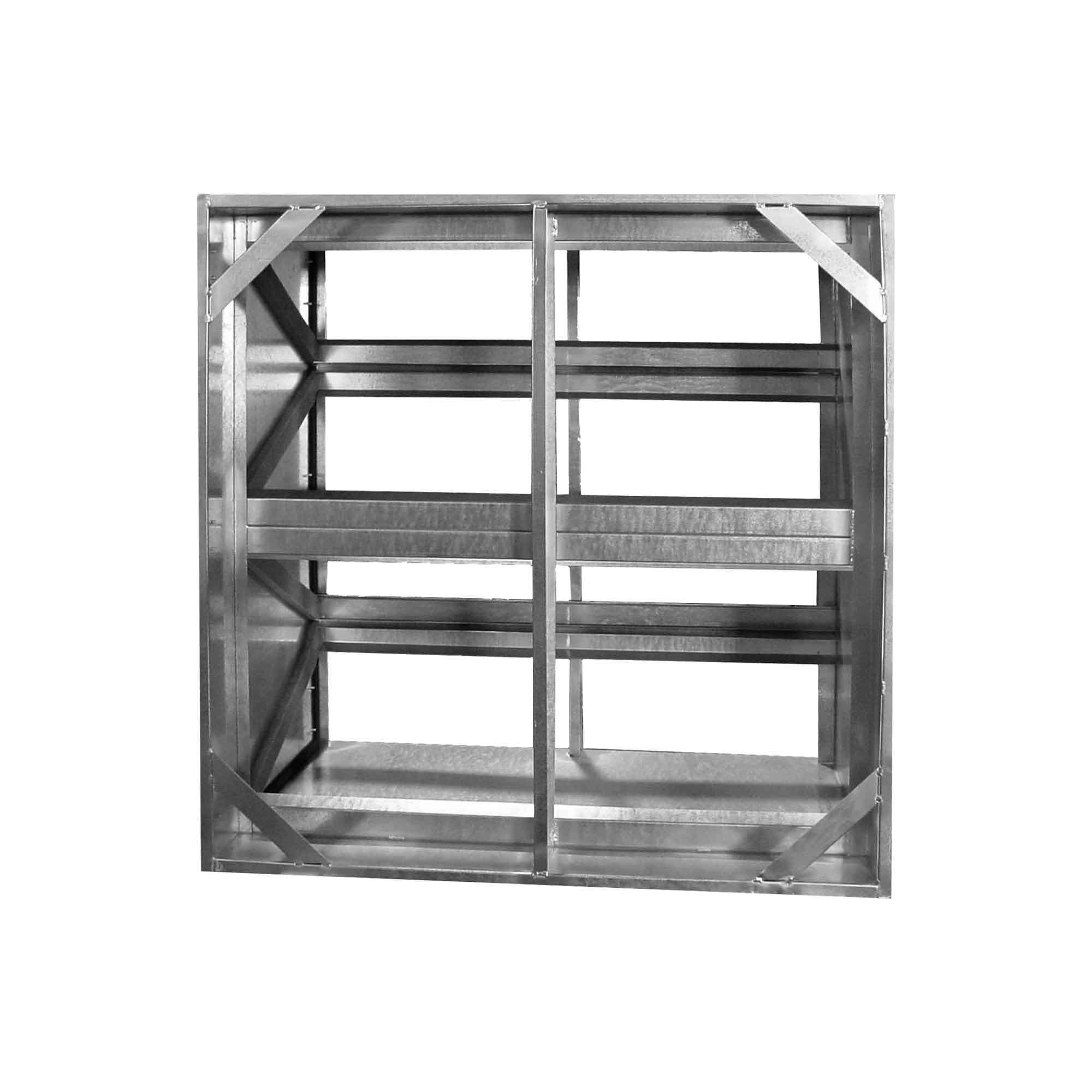

Microlock ASHRAE VB Housing

Galvanized or stainless steel options
Welded construction with corner supports for rigidity
Flexible filter configurations
Gasketed, positive-tension doors
V-bank design

Product Datasheet

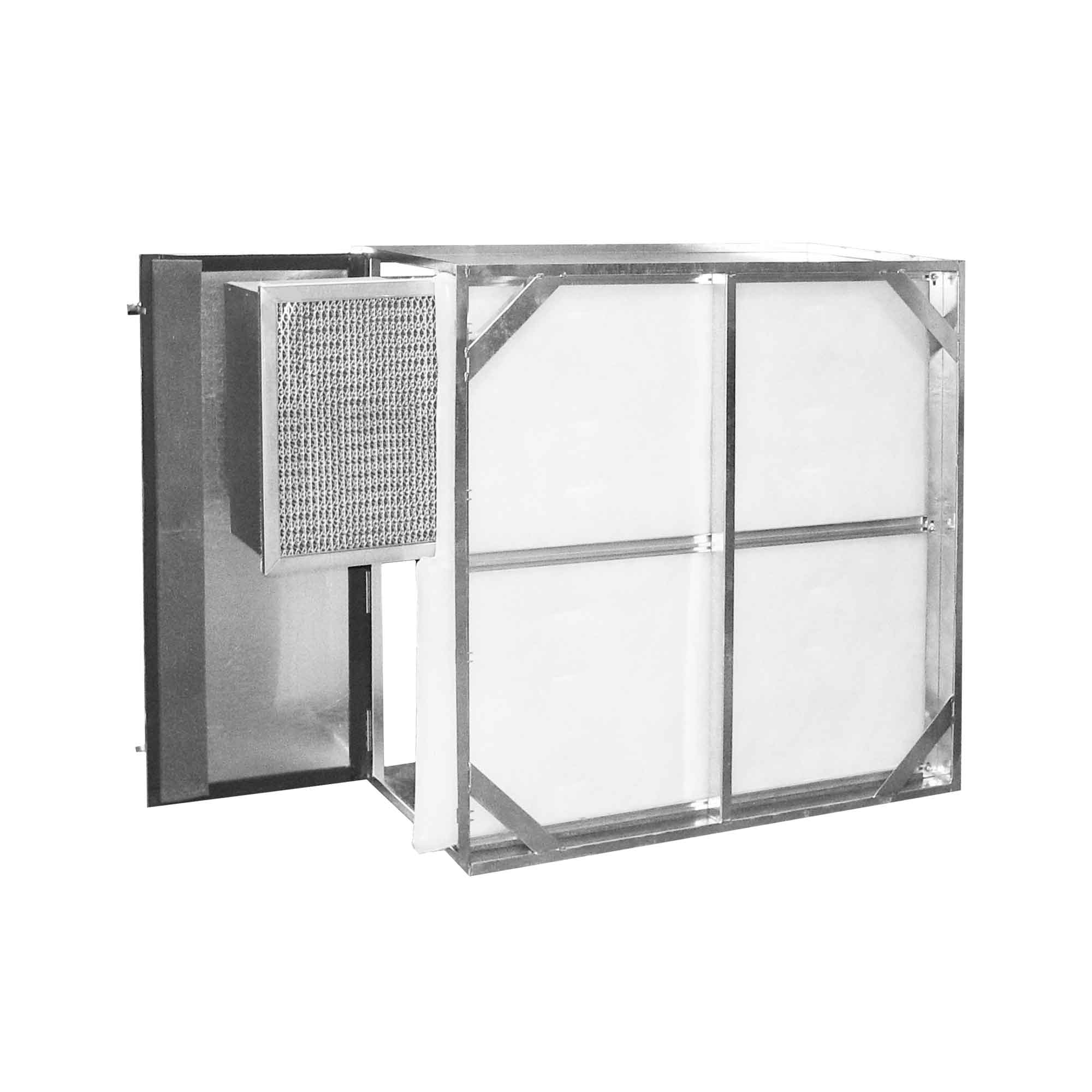

Microlock ASHRAE SA Housing

Microlock ASHRAE SA Housing

Available in galvanized and stainless steel
Welded construction with corner supports for rigidity
Perform up to ± 3” w.g.
Positive-tension gasketed doors
Factory installed flange

Product Datasheet
