High Purity Products - Ready to Ship
MANN+HUMMEL Air Filtration Americas offers state-of-the-art High Purity filtration solutions, including HEPA and ULPA filters, while enabling you to manage your energy usage and operational costs well. Solutions for High Purity applications including healthcare, pharmaceutical manufacturing, and Laminar Flow technologies can be found below!
Please find below a list of in stock High Purity Product inventory with lead times of 5 days. Click on the part # to view the available coordinating sales drawings. Contact your Regional Sales Director for current inventory levels.

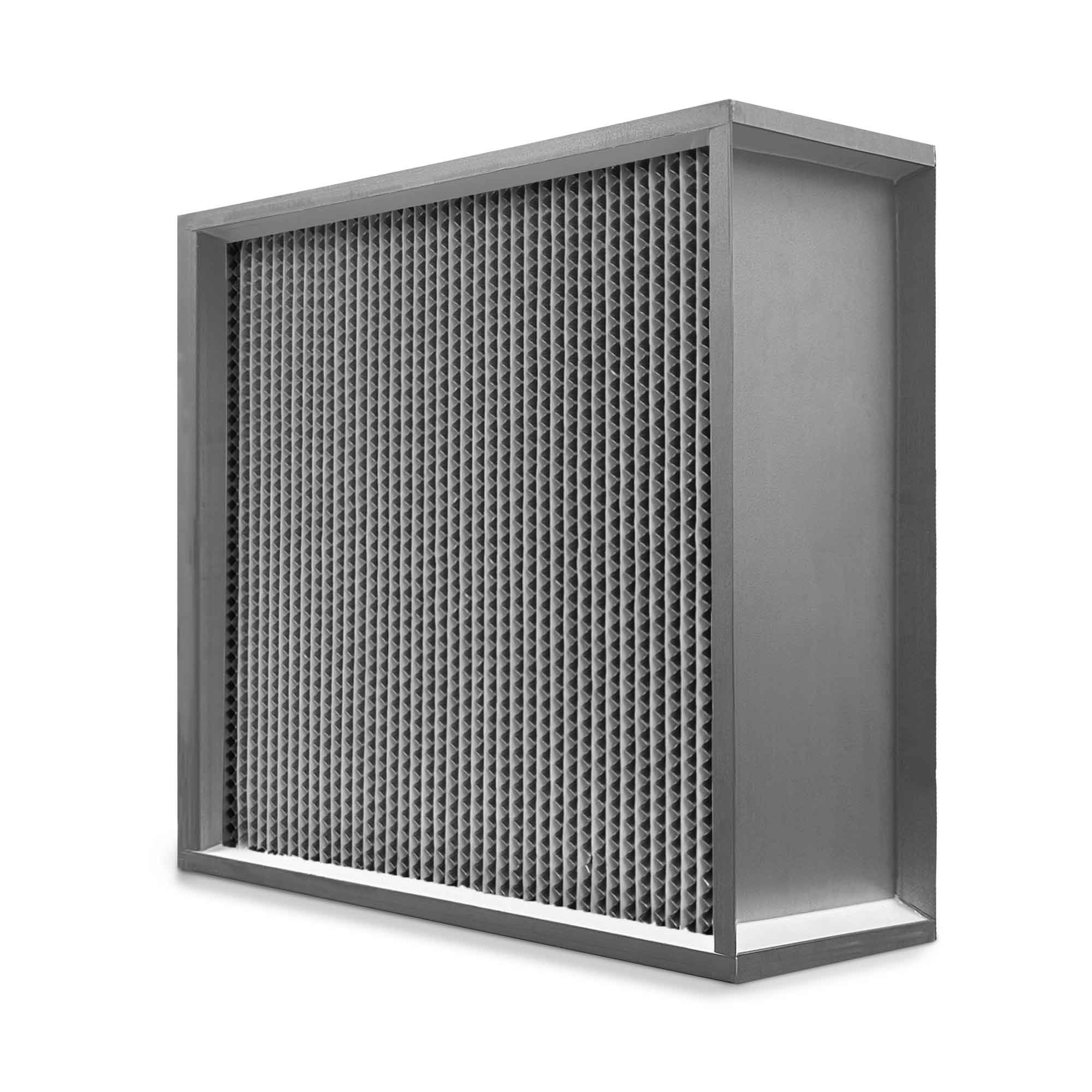

- Galvanized frame materials
- Quality controlled glass microfiber media packs
- Rolled and tapered aluminum separators
- 99.99% @ 0.3 micron efficiency
- Gasket seal
- 500 FPM Rated
| Product # | Size | Short Description |
|---|---|---|
| 71JH50124E24EC1200D0 | 24 x 24 x 11.5 | High cap., 99.99% @ 0.3 micron, box style, galvanized frame, gasket downstream |
| 71JH50124E12EC1200D0 | 24 x 12 x 11.5 | High cap., 99.99% @ 0.3 micron, box style, galvanized frame, gasket downstream |
| 71JH50123C23CC1100D0 | 23.375 x 23.375 x 11.5 | High cap., 99.99% @ 0.3 micron, box style, galvanized frame, gasket upstream |
| 71JH50123C11CC1200D0 | 23.375 x 11.375 x 11.5 | High cap., 99.99% @ 0.3 micron, box style, galvanized frame, gasket downstream |

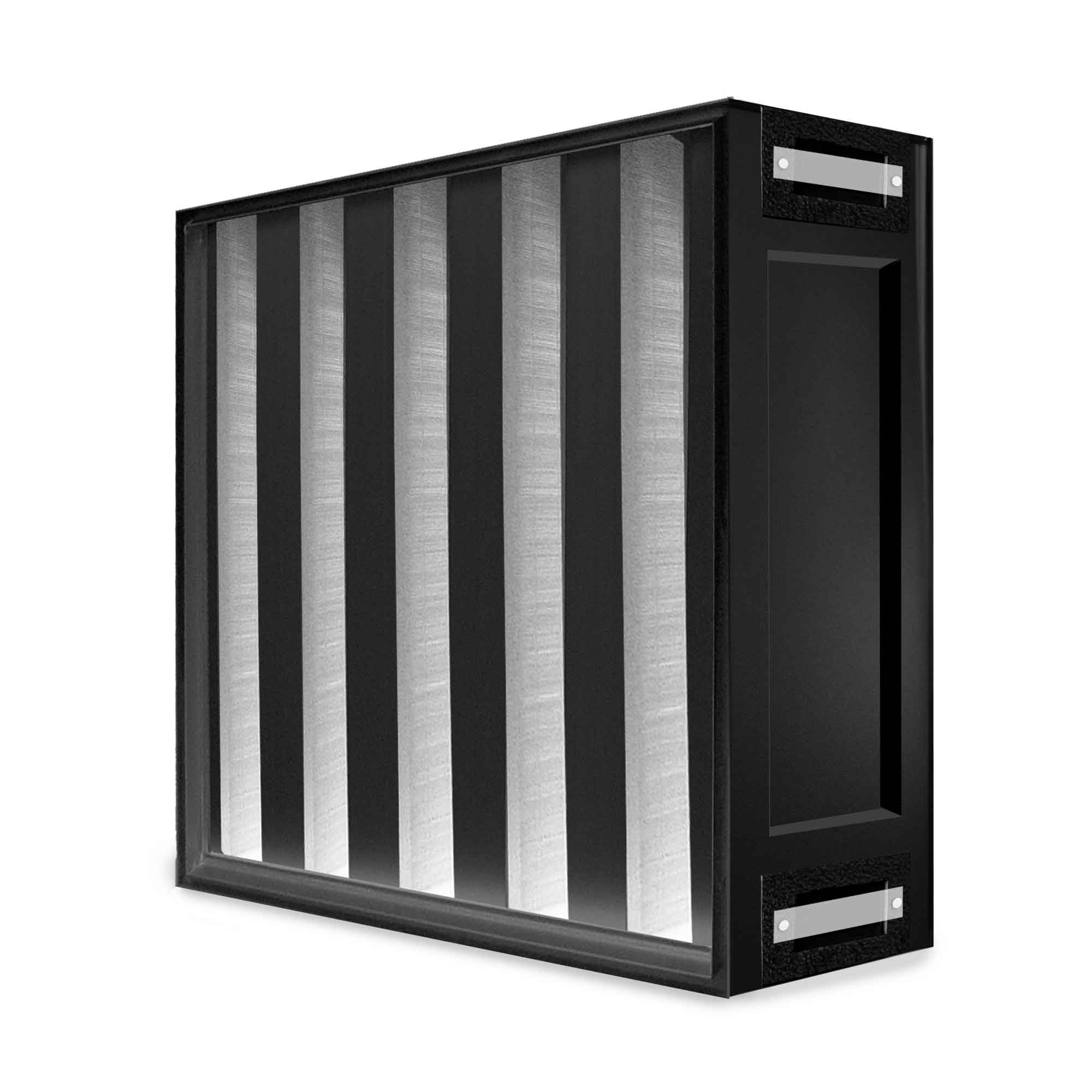

- ABS plastic frame material
- Quality controlled mini pleat media pack
- Extended service life and reduced energy consumption
- 99.99% @ 0.3 micron efficiency
- Gasket seal
- Handles for easy loading and removal
- 500 FPM
| Product # | Size | Short Description |
|---|---|---|
| 7VHJ20P023C23CC12CH | 23.375 x 23.375 x 11.5 | V-Bank HEPA, 99.99% @ 0.3 micron, plastic frame, gasket downstream |
| 7VHJ20P024E24EC12CH | 24 x 24 x 11.5 | V-Bank HEPA, 99.99% @ 0.3 micron, plastic frame, gasket downstream |
| 7VHJ20P012E24EC12CH | 12 x 24 x 11.5 | V-Bank HEPA, 99.99% @ 0.3 micron, plastic frame, gasket downstream |
| 7VHJ20P011C23CC12CH | 11.375 x 23.375 x 11.5 | V-Bank HEPA, 99.99% @ 0.3 micron, plastic frame, gasket downstream |

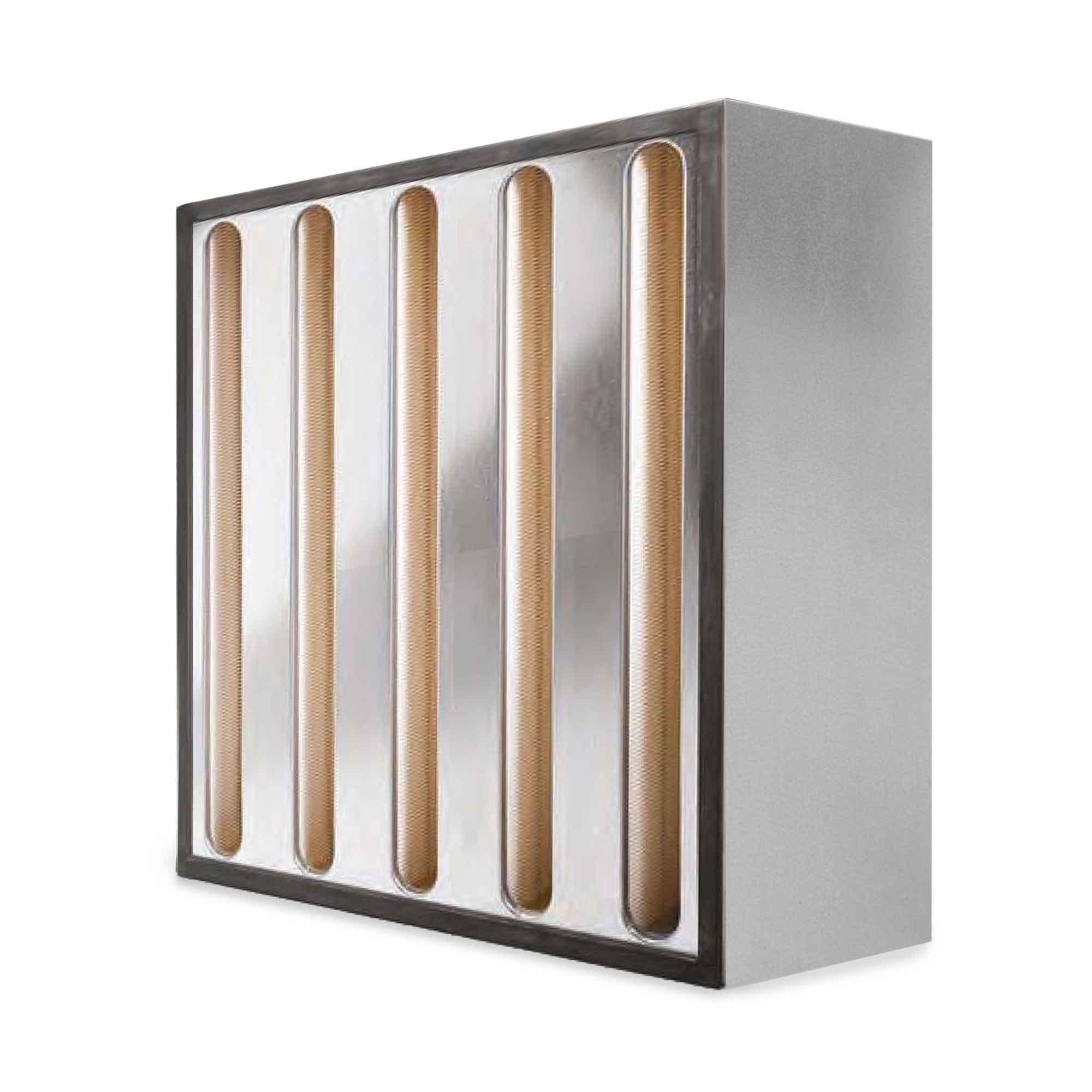

- Galvanized frame material
- Quality controlled mini pleat media pack
- Extended service life and reduced energy consumption
- 99.99% @ 0.3 micron efficiency
- Gasket seal
| Product # | Size | Short Description |
|---|---|---|
| 7VHJ24V524E24EC52C0 | 24 x 24 x 11.5 | V-Bank HEPA, 99.99% @ 0.3 micron, galvanized frame, gasket downstream |
| 7VHJ24V512E24EC52C0 | 12 x 24 x 11.5 | V-Bank HEPA, 99.99% @ 0.3 micron, galvanized frame, gasket downstream |

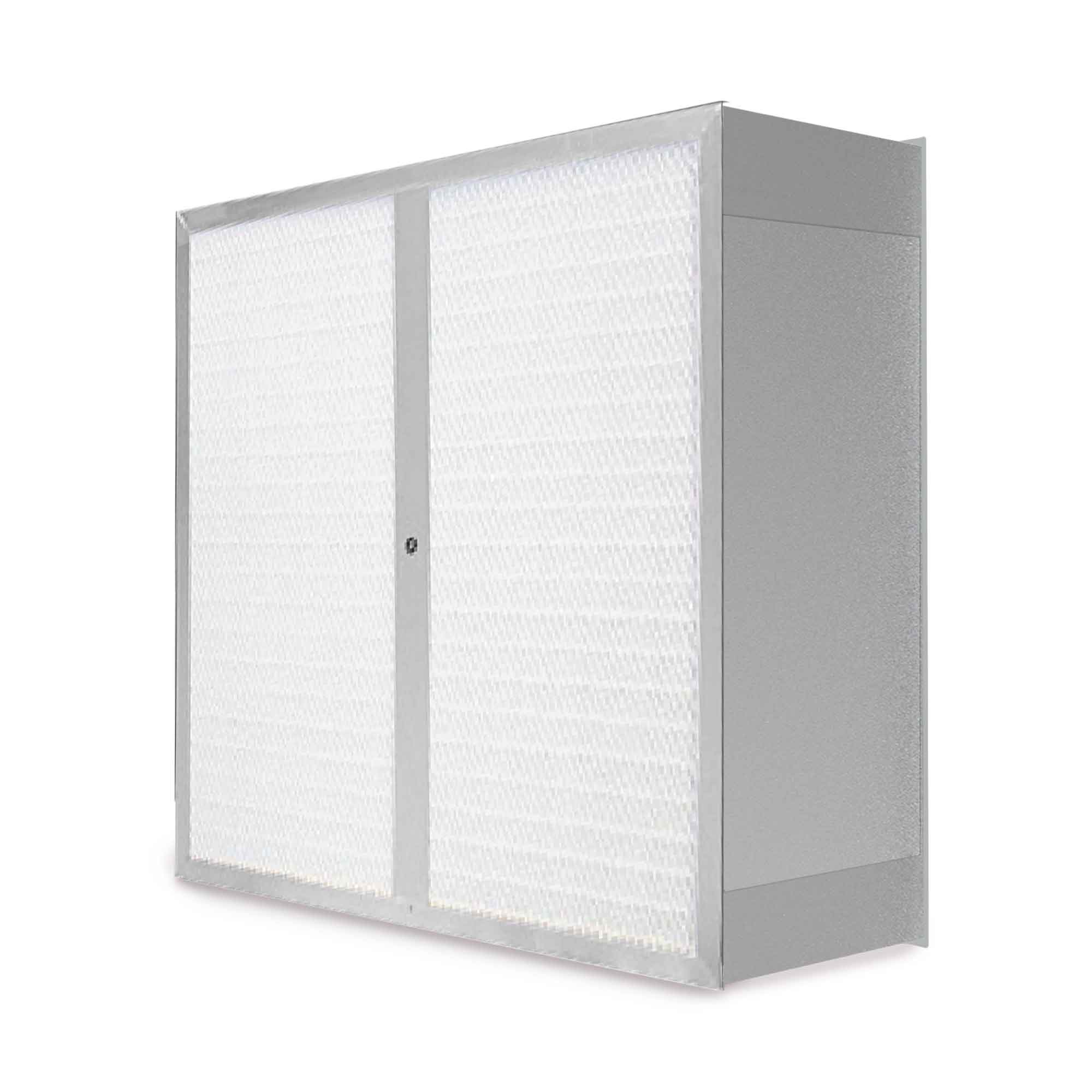

- Low profile
- Adjustable distribution plate
- Scan tested
- 2′′ (53 mm) media pack
- Anodized extruded aluminum frame
- 99.99% @ 0.3 micron
| Product # | Size | Short Description |
|---|---|---|
| 8TJBBG23F47F0E1C10D0 | 23.625 x 47.625 x 5.92 | Ducted terminal module, 2x4, 99.99% @ 0.3 micron, anodized extruded aluminum frame, 53mm pack, 12" round adjustable baffle plate |

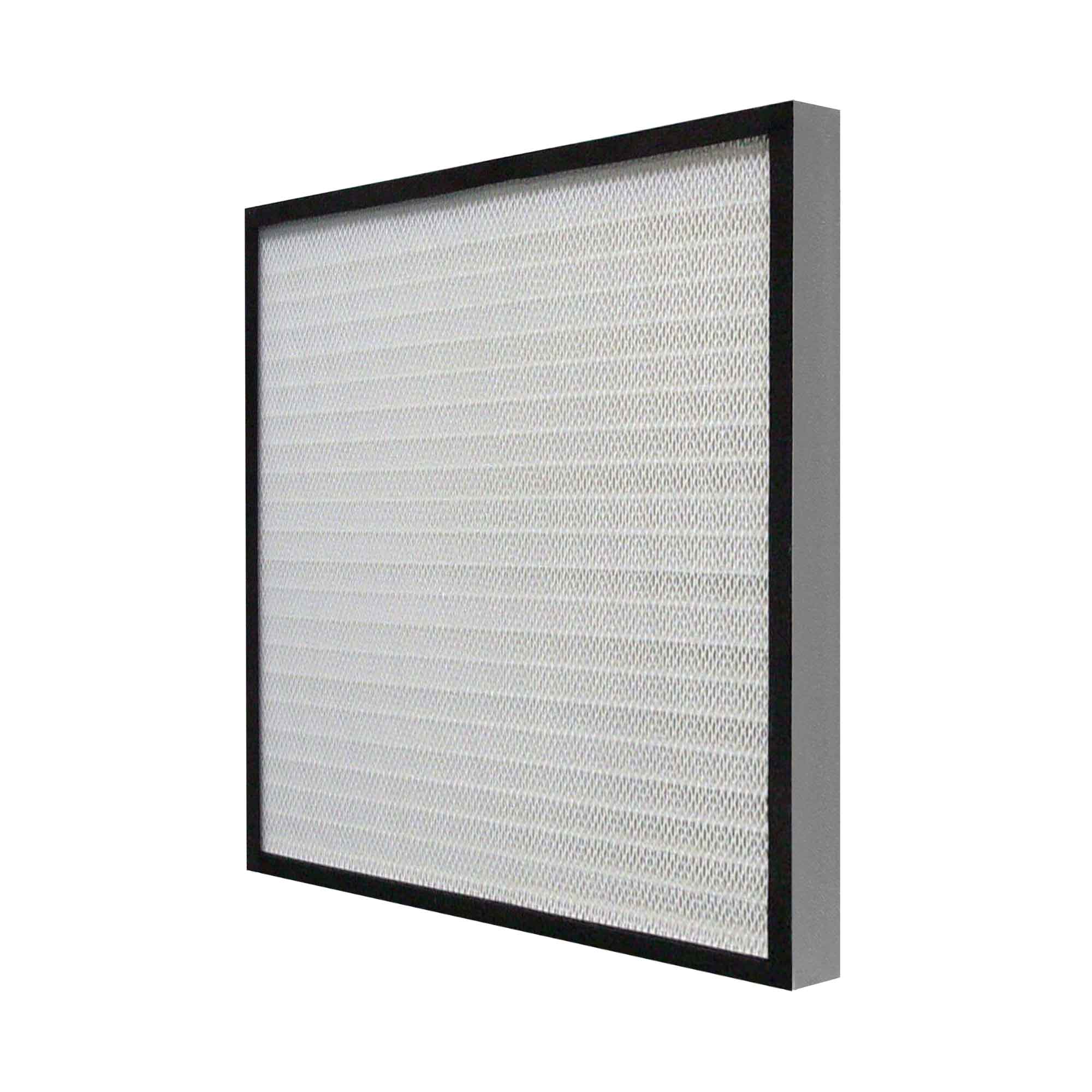

- Available in gasket and gel
- Metal faceguard
- 2" (53 mm) to 4" (100 mm) media pack
- Anodized extruded aluminum frame
- Quality controlled manufacturing facility
- 99.99% @ 0.3 micron
| Product # | Size | Short Description |
|---|---|---|
| 8PJBXX19Y19YE42000DX | 19.8125 x 19.8125 x 3.46 | Cleanroom panel, 99.99% @ 0.3 micron, anodized extruded aluminum frame, fluid seal reverse gel, 53mm pack |
| 8PJBXX19Y43YE42000DX | 19.8125 x 43.8125 x 3.46 | Cleanroom panel, 99.99% @ 0.3 micron, anodized extruded aluminum frame, fluid seal reverse gel, 53mm pack |
| 8PJBXX21G20EE42000DX | 21.75 x 20 x 3.46 | Cleanroom panel, 99.99% @ 0.3 micron, anodized extruded aluminum frame, fluid seal reverse gel, fits GSR hood |
| 8PJBXX21G44EE42000DX | 21.75 x 44 x 3.46 | Cleanroom panel, 99.99% @ 0.3 micron, anodized extruded aluminum frame, fluid seal reverse gel, fits GSR hood |
